TK Short Type Through Hole Rotary Hydraulic Cylinder

Short type Thru-Hole Hydraulic Rotary Cylinder with Safety Device

Short Type Thruhole | Hydraulic

Super short form, light weight large Through-Hole, just as 2/3 of typical model length.
Built-in safety check valves and pressure relief valves.
Can screw it from the rear end of the cylinder when mounting.
Patent numbers :

Taiwan : PAT.NO.M491534
China : PAT.NO.ZL201420584274.5

Add to inquiry

Catalog Download Manual Download

Specifications
Dimensions
Download

Model	Eff. piston area cm² Extend	Eff. piston area cm² Retract	Piston stroke (mm)	Max. speed min^-1(r.p.m.)	Max. pressure MPa(kgf/cm²)	I kg‧m²	Weight (kg)	Total oil leakage lit./min
TK-A528	73	69.7	12	8000	4.5 (45)	0.012	6.2	3
TK-A533	73	69.7	12	8000	4.5 (45)	0.012	6	3
TK-C643	99.1	88.0	15	7000	4.5 (45)	0.018	7.5	3
TK-A646	105.0	93.9	15	7000	4.5 (45)	0.018	7.3	3
TK-B646	105.0	93.9	15	7000	4.5 (45)	0.018	8.6	3
TK-C646	99.1	88.0	15	7000	4.5 (45)	0.018	7.5	3
TK-B846	135.3	125.0	20	6300	4.5 (45)	0.032	12.4	3.9
TK-A853	135.3	125.0	20	6300	4.5 (45)	0.032	11.8	3.9
TK-B853	135.3	125.0	20	6300	4.5(45)	0.032	11.7	3.9
TK-A1068	170.1	155.3	25	5500	4.5(45)	0.065	19.2	4.2
TK-A1075	170.1	155.0	25	5500	4.5(45)	0.065	18.8	4.2
TK-A1078	170.1	155.3	25	5500	4.5(45)	0.065	17.4	4.2
TK-A1287	234	217.5	30	3800	4.0 (40)	0.092	24.8	4.5
TK-A1291	234	217.5	30	3800	4.0 (40)	0.092	24.8	4.5
TK-A1511	336.4	315.2	30	3000	3.5(35)	0.38	57.9	7
TK-A1512	336.4	315.2	30	3000	3.5(35)	0.38	53.8	7
TK-A1512-35	336.4	315.2	35	3000	3.5(35)	0.38	53.8	7
TK-2114	373.2	336.1	35	2500	3.0 (30)	0.54	58.2	8
TK-2416	418.4	375.4	35	2000	3.0 (30)	1.12	78	9
TK-2416L	418.4	375.4	51	2000	3.0 (30)	1.31	79.2	9
TK-2820	526.2	472.6	51	1600	3.0 (30)	2.4	134	10

* Subject to technical changes.

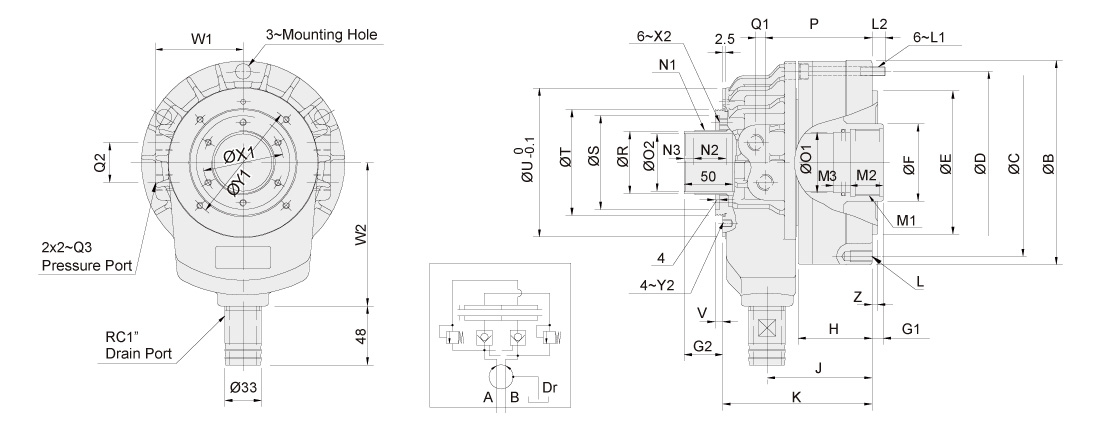

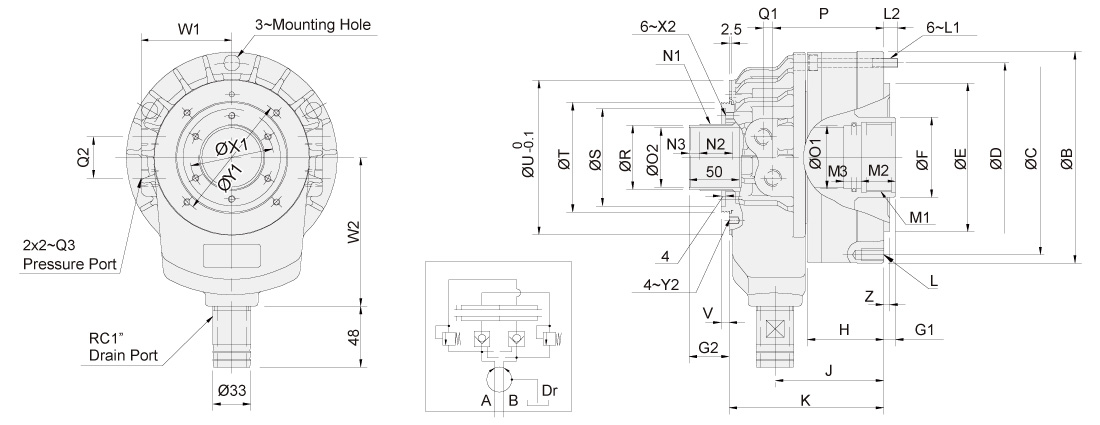

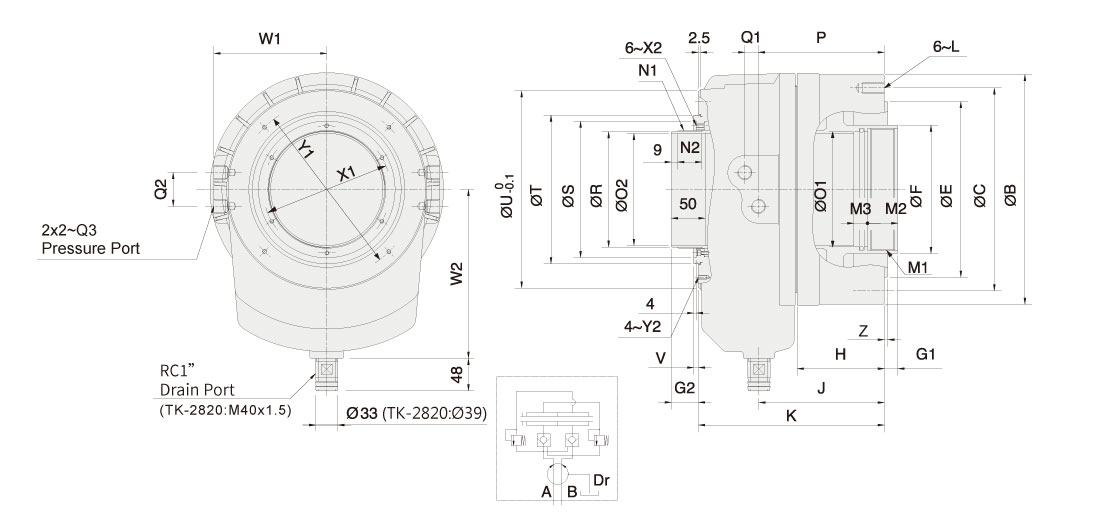

Model	A I.D.	B	C	D	E h7	F	G1max.	G2max.	G2min	H	J	K	L	L1	L2	M1	M2	M3	N1	N2	N3	O1 H8	O2 H8	P	Q1	Q2	Q3	R g7	S H7	T	U	V	W1	W2	X1	X2	Y1	Y2	Z
TK-A528	105	141	125	125	110	45	12	38	26	49	77.5	123	6~M8x20	M8x55	14	M38x1.5	25	13	M39x1.5	25	8	35	28	79	8.5	30	RC1/4	37	62	70	98	6	62	110	49	M6x6	83	M5x6	5
TK-A533	105	141	125	125	110	45	12	38	26	49	77.5	123	6~M10x20	M8x55	14	M38x1.5	25	13	M39x1.5	25	8	35	33	79	8.5	30	RC1/4	37	62	70	98	6	62	110	49	M6x6	83	M5x6	5
TK-C643	128	156	140	140	120	65	15	44	29	56	85	125	12~M10x20	M8x60	12	M50x2	25	13	M52x1.5	29	9	45	43	87	8.5	36	RC3/8	50	76	85	116	9.5	74	120	64	M6x10	98	M5x6	5
TK-A646	128	162	147	147	130	65	15	44	29	56	85	125	12~M10x20	M8x60	12	M55x2	25	13	M52x1.5	29	9	50	46	87	8.5	36	RC3/8	50	76	85	116	9.5	74	120	64	M6x10	98	M5x6	5
TK-B646	128	162	130	147	100	65	15	44	29	66	95	135	12~M10x20	M8x70	12	M55x2	30	15	M52x1.5	29	9	50	46	97	8.5	36	RC3/8	50	76	85	116	9.5	74	120	64	M6x10	98	M5x6	5
TK-C646	125	156	140	140	120	65	15	44	29	56	85	125	12~M10x20	M8x60	12	M55x2	25	13	M52x1.5	29	9	50	46	87	8.5	36	RC3/8	50	76	85	116	9.5	74	120	64	M6x10	98	M5x6	5
TK-B846	145	185	170	165	130	70	20	48	28	66	95	135	12~M10x20	M8x70	12	M55x2	30	15	M58x1.5	30	8	50	46	97	8.5	36	RC3/8	56	85	96	128	11.5	79	130	73	M6x12	110	M6x6	5
TK-A853	145	185	170	165	140	70	20	48	28	66	95	135	12~M10x20	M8x70	12	M60x2	30	15	M58x1.5	30	8	55	53	97	8.5	36	RC3/8	56	85	96	128	11.5	79	130	73	M6x12	110	M6x6	5
TK-B853	145	185	170	165	130	70	20	48	28	66	95	135	12~M10x20	M8x70	12	M60x2	30	15	M58x1.5	30	8	55	53	97	8.5	36	RC3/8	56	85	96	128	11.5	79	130	73	M6x12	110	M6x6	5
TK-A1068	170	212	190	190	160	95	25	50	25	74	108	158	12~M10x20	M10x80	16	M75x2	35	15	M84x2	34	9	70	68	110	12	40	RC1/2	81	108	121	164	10	98	160	98	M6x12	155	M6x8	5
TK-A1075	170	212	190	190	160	95	25	50	25	74	108	158	12~M10x20	M10x80	16	M85x2	35	15	M84x2	34	9	80	75	110	12	40	RC1/2	81	108	121	164	10	98	160	98	M6x12	155	M6x8	5
TK-A1078	170	212	190	190	160	95	25	50	25	74	108	158	12~M10x20	M10x80	16	M87x2	35	15	M84x2	34	9	82	78	110	12	40	RC1/2	81	108	121	164	10	98	160	98	M6x12	155	M6x8	5
TK-A1287	200	245	215	225	180	110	30	59	29	86	126	184	12~M12x24	M10x90	14.5	M95x2	35	15	M99x2	38	9	90	87	127.5	15	45	RC1/2	96	120	138	180	7	110	185	108	M6x10	165	M6x10	5
TK-A1291	200	245	215	225	180	110	30	59	29	86	126	184	12~M12X24	M10x90	14.5	M100x2	35	15	M99x2	38	9	95	91	127.5	15	45	RC1/2	96	120	138	180	7	110	185	108	M6x10	165	M6x10	5
TK-A1511	250	300	275	275	230	140	30	58	28	102	156	226	12~M16X36	M12x110	21	M120x2	45	15	M129x2	38	9	115	110	153.75	17	50	RC1/2	126	150	170	227	7	134	210	138	M6x10	210	M6x9	6
TK-A1512	250	300	275	275	230	140	30	58	28	102	156	226	12~M16X36	M12x110	21	M130x2	45	15	M129x2	38	9	125	120	153.75	17	50	RC1/2	126	150	170	227	7	134	210	138	M6x10	210	M6x9	6
TK-A1512-35	250	300	275	275	230	140	35	63	28	102	161	231	12~M16x36	M12x115	21	M130x2	45	15	M129x2	38	9	125	120	158.75	17	50	RC1/2	126	150	170	227	7	134	210	138	M6x10	210	M6x9	6
TK-2114	265	320	295	295	240	165	35	60	25	115	173.5	247.5	12~M16X36	M12x120	17.5	M155x2	45	20	M149x2	38	9	145	140	170	17	50	RC1/2	146	170	190	250	7	145	210	160	M6x10	230	M6x10	6
TK-2416	290	340	300	-	260	190	35	60	25	129	185.5	275	M16x32	-	-	M180x3	45	20	M174x2	38	-	170	166	186.5	20	50	RC1/2	171	202	220	292	7	167	250	188	M6x11	260	M6x12	5
TK-2416L	290	340	300	-	260	190	51	76	25	145	201.5	291	M16x32	-	-	M180x3	45	20	M174x2	52	-	170	166	202.5	20	50	RC1/2	171	202	220	292	7	167	250	188	M6x11	260	M6x12	6
TK-2820	340	395	360	-	320	235	51	76	25	152	212.5	316	M20x40	-	-	M220x3	45	20	M218x2	52	-	210	205	216	21	50	RC1/2	215	262	285	360	7	202.5	300	240	M6x12	320	M6x12	6
