3J
| Model | Rotating stroke (mm) | Claming stroke (mm) | Jaw's compensation (mm) | Chucking Dia. Max. (mm) | Chucking Dia. Min. (mm) | Max. D.B. pull kN (kgf) | Max. clamping force kN (kgf) | Max. speed min-1 (r.p.m.) | I kg‧m 2 | Weight (kg) | Matching cyl. | Max. pressure MPa (kgf/cm2) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3J-05 | 12 | 8 | 2 | 53 | 25 | 7.5 (765) |
6.0 (612) |
4000 | 0.02 | 11.0 | RK-100 OR RK-100(N) |
1.0(10) |
| 3J-06 | 12 | 8 | 2 | 79 | 55 | 9.0 (918) |
7.5 (765) |
4000 | 0.04 | 12.0 | RK-100 OR RK-100(N) |
1.2(12) |
| 3J-08 | 12 | 8 | 2 | 106 | 75 | 18.0 (1835) |
16.5 (1680) |
3500 | 0.13 | 23.0 | RK-100 OR RK-100(N) |
2.5(25) |
| 3J-10 | 12 | 8 | 2.5 | 150 | 119 | 18.0 (1835) |
16.5 (1680) |
3500 | 0.3 | 33.0 | RK-100 OR RK-100(N) |
2.5(25) |
| 3J-12 | 12 | 8 | 2.5 | 200 | 169 | 18.0 (1835) |
16.5 (1680) |
3000 | 0.56 | 44.0 | RK-100 OR RK-100(N) |
2.5(25) |

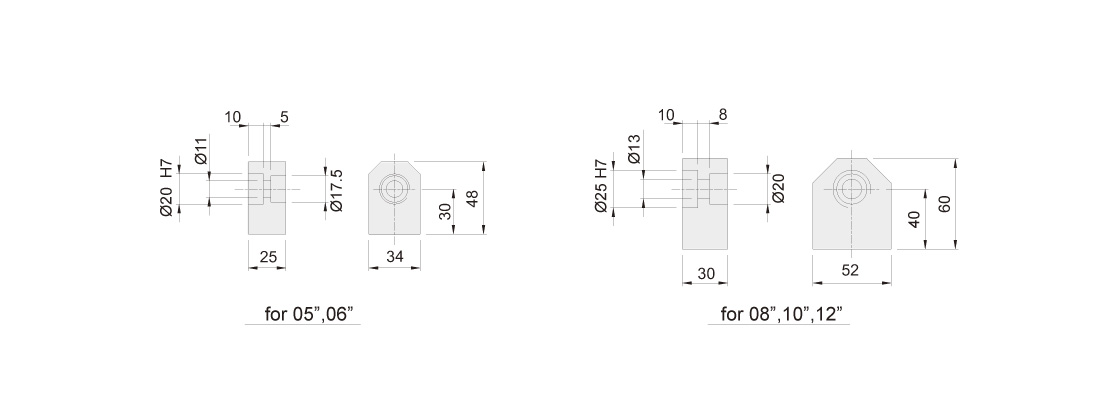

.jpg)
.jpg)
* Subject to technical changes.

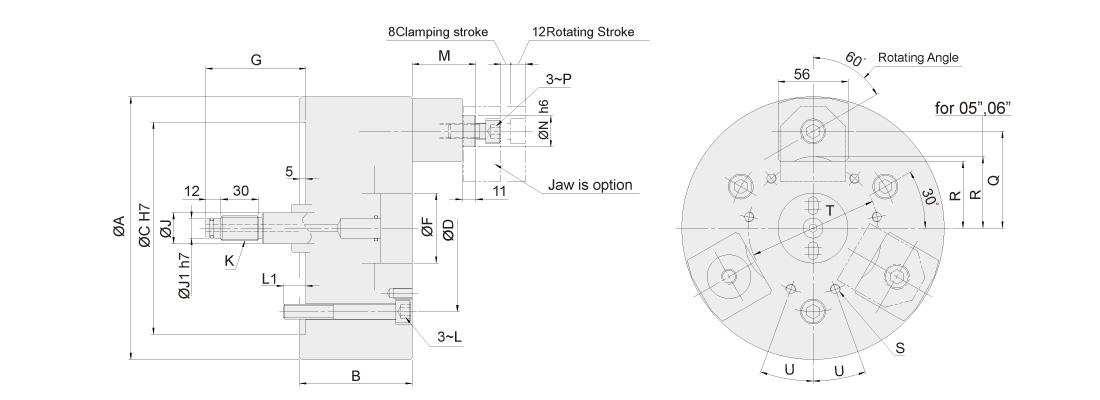

| Model | A | B | C | D | F | G max. | G min. | J | J1 | K | L | L1 | M max. | M min. | N | P | Q | R | S | T | U |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3J-05 | 135 | 86 | 110 | 82.6 | 40 | 75 | 55 | 25 | 9 | M12X1.75 | M10 | 15 | 56 | 36 | 20 | M10 | 42.5 | 27 | 3~M6 | 50 | - |
| 3J-06 | 165 | 86 | 140 | 104.8 | 45 | 75 | 55 | 28 | 12 | M16X2 | M10 | 15 | 56 | 36 | 20 | M10 | 57.5 | 40 | 3~M8 | 64 | - |
| 3J-08 | 210 | 90 | 170 | 133.4 | 56 | 80 | 60 | 38 | 16 | M20X2.5 | M12 | 18 | 71 | 51 | 25 | M12 | 77.5 | 53.5 | 6~M8 | 104 | 20° |
| 3J-10 | 254 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20X2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 99.5 | 75.5 | 6~M8 | 140 | 20° |
| 3J-12 | 304 | 95 | 220 | 171.4 | 56 | 75 | 55 | 38 | 16 | M20X2.5 | M16 | 24 | 71 | 51 | 25 | M12 | 124.5 | 100.5 | 6~M8 | 190 | 20° |
| Model | 2D pdf | 2D dwg | 3D step |
|---|---|---|---|
| 3J-05 |  |  |  |
| 3J-06 | | | |
| 3J-08 | | | |
| 3J-10 | | | |
| 3J-12 | | | |
